Xbox One X HDMI Recovery Repair from another shop

Previous attempt all signal lines ripped!?!

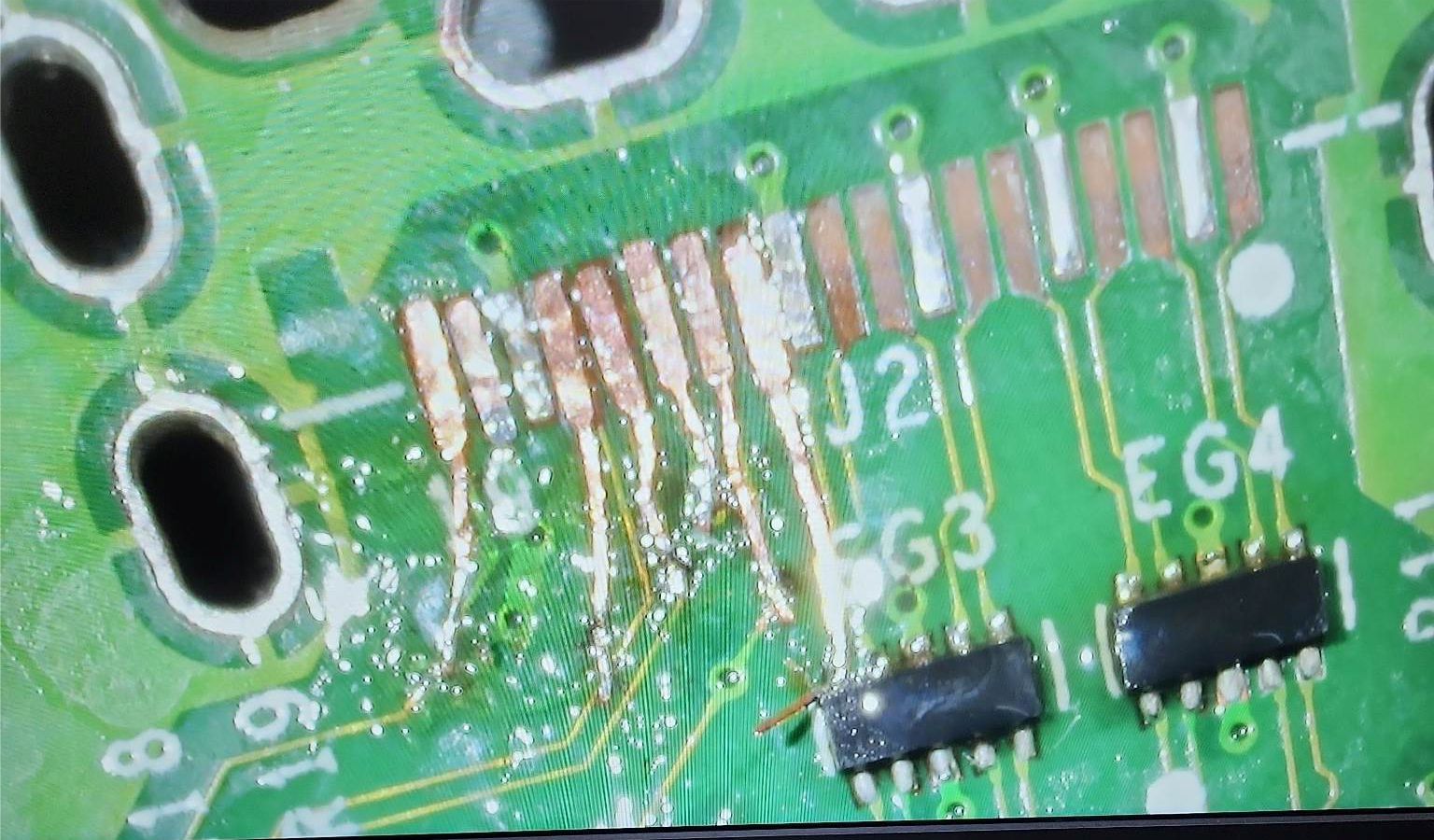

Replacement Pads Installed

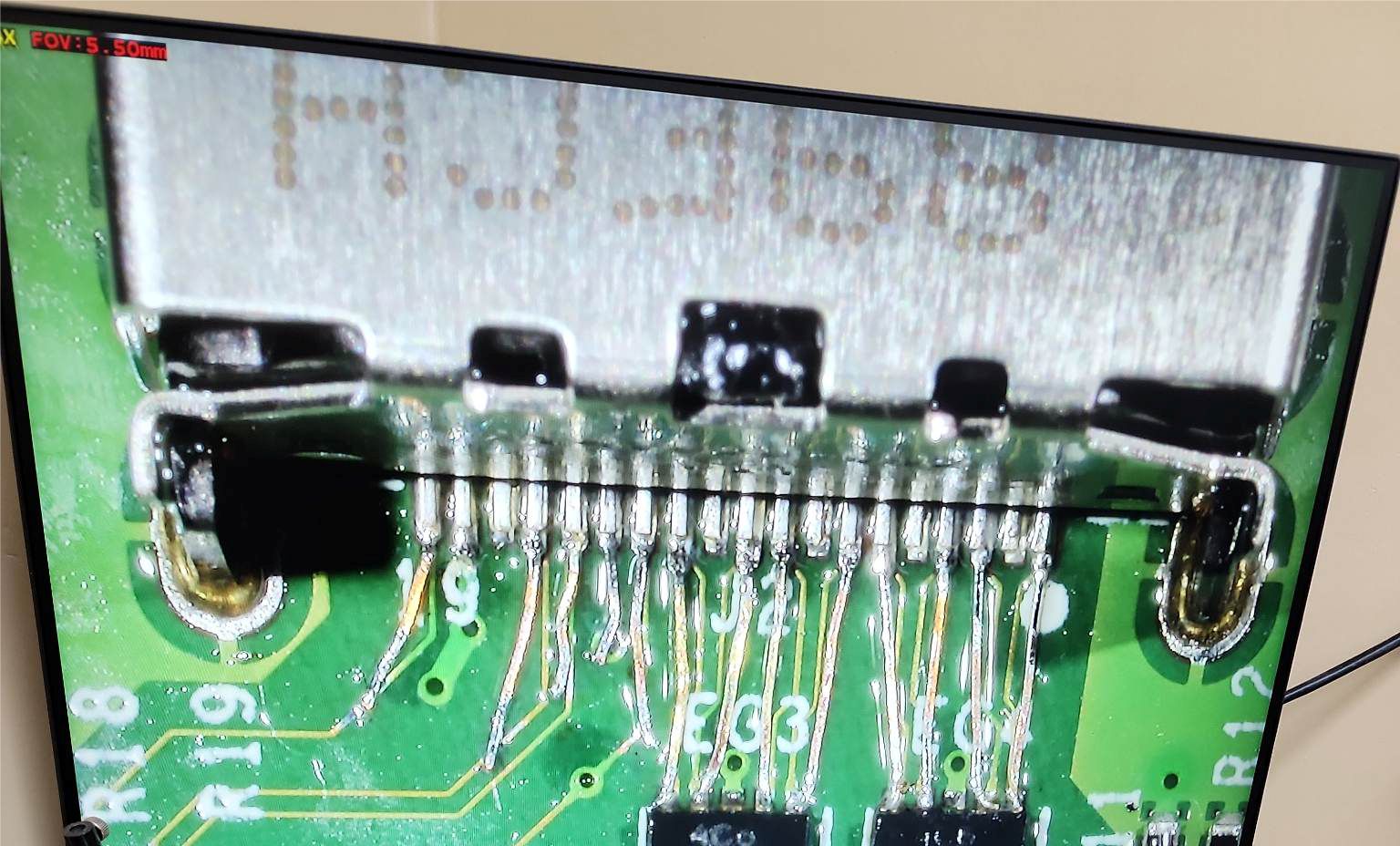

Port soldered into place!
Customer got it repaired second hand, and it did not work.  Upon inspection the port was soldered with all the pads missing?



  • Only the ground pads are left, we must reconstruct each missing signal pad, yikes!

  • We'll need to reconstruct solder pad using copper jumper pads.
  • After much toiling, we are successful.
  • Another HDMI repair in the books, shipping back to ebay customer.

Another fast and most excellent repair my dudes!
